Description
Hardware specifications

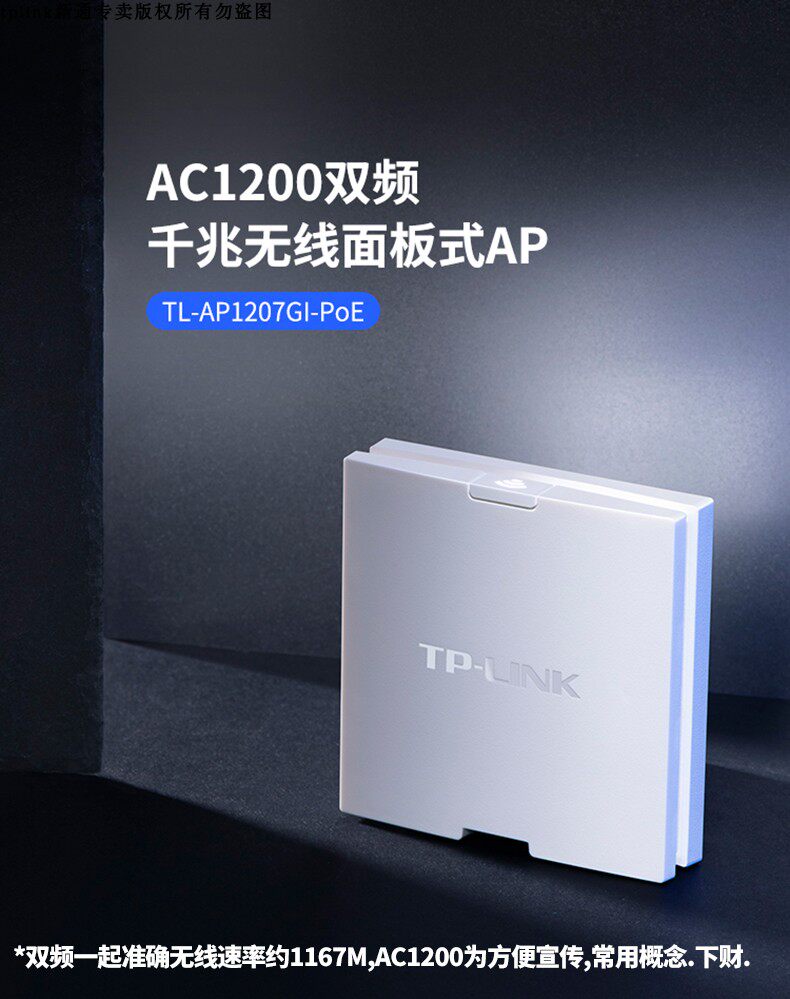

Product model :TL-AP1207G-PoE

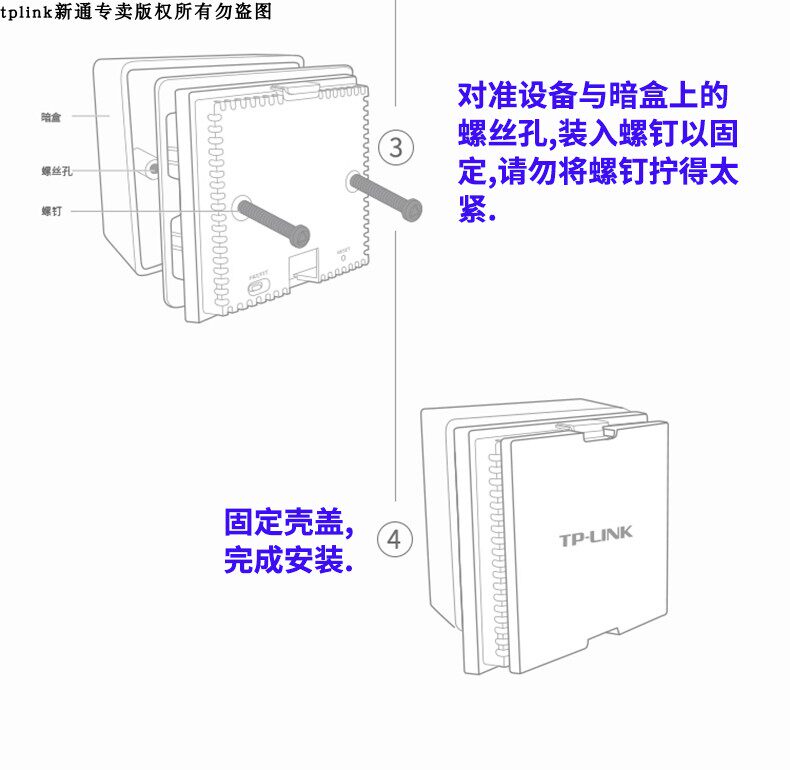

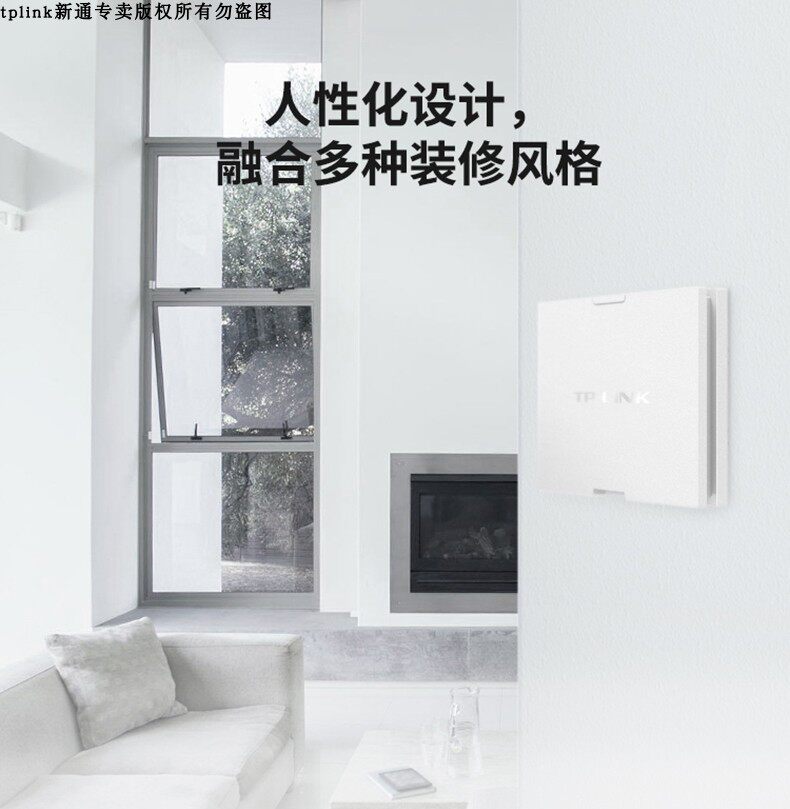

Installation method: directly installed in the national standard 86 type network junction cassette
Size: 86*86*55mm
Wireless rate
:2.4GHz ：300Mbps
:5GHz: 867Mbps
Port

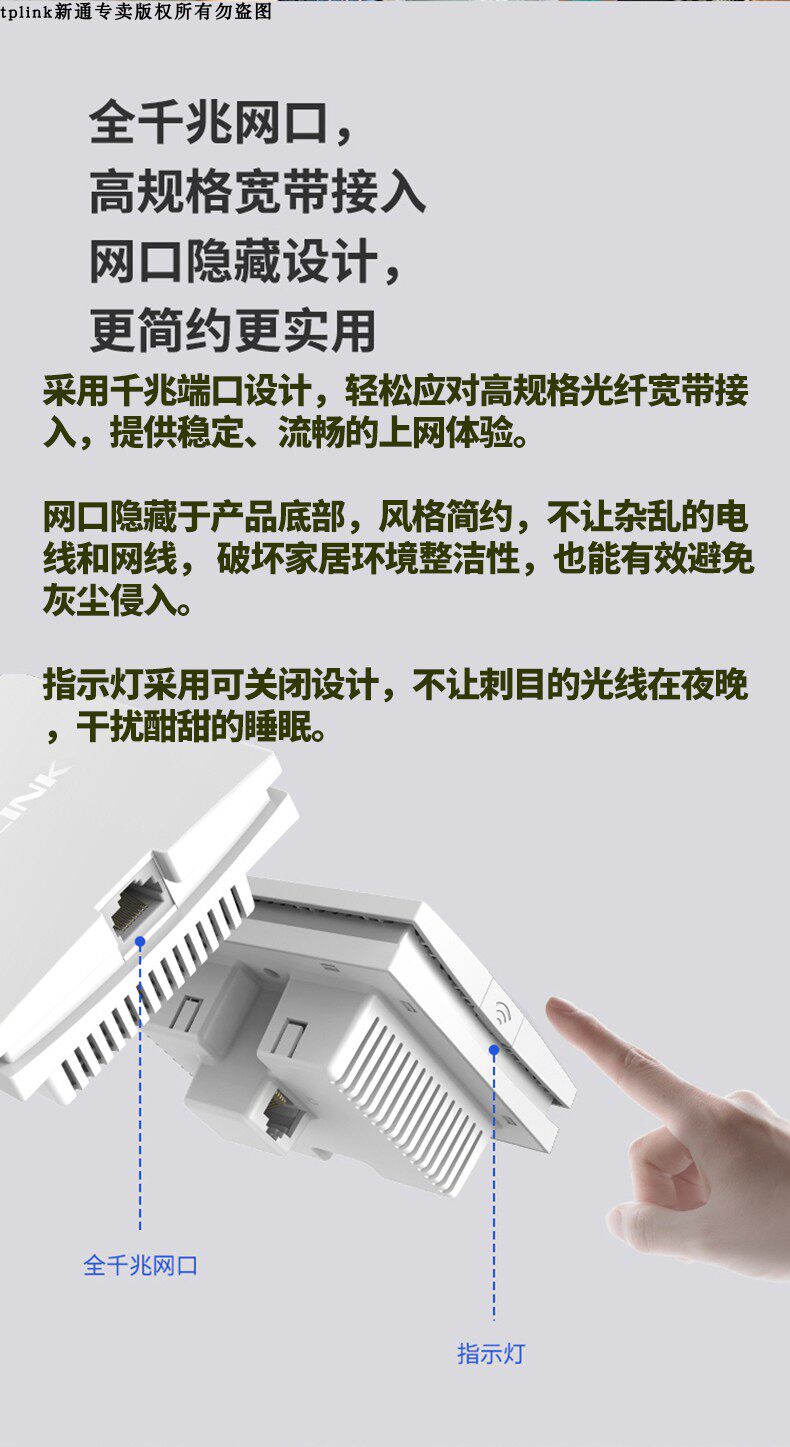

: Front: 1 10/100/1000M RJ45 port
: Back: 1 10/100/1000M RJ45 port
Antenna: built-in antenna
Indicator light: 1 system indicator
Button

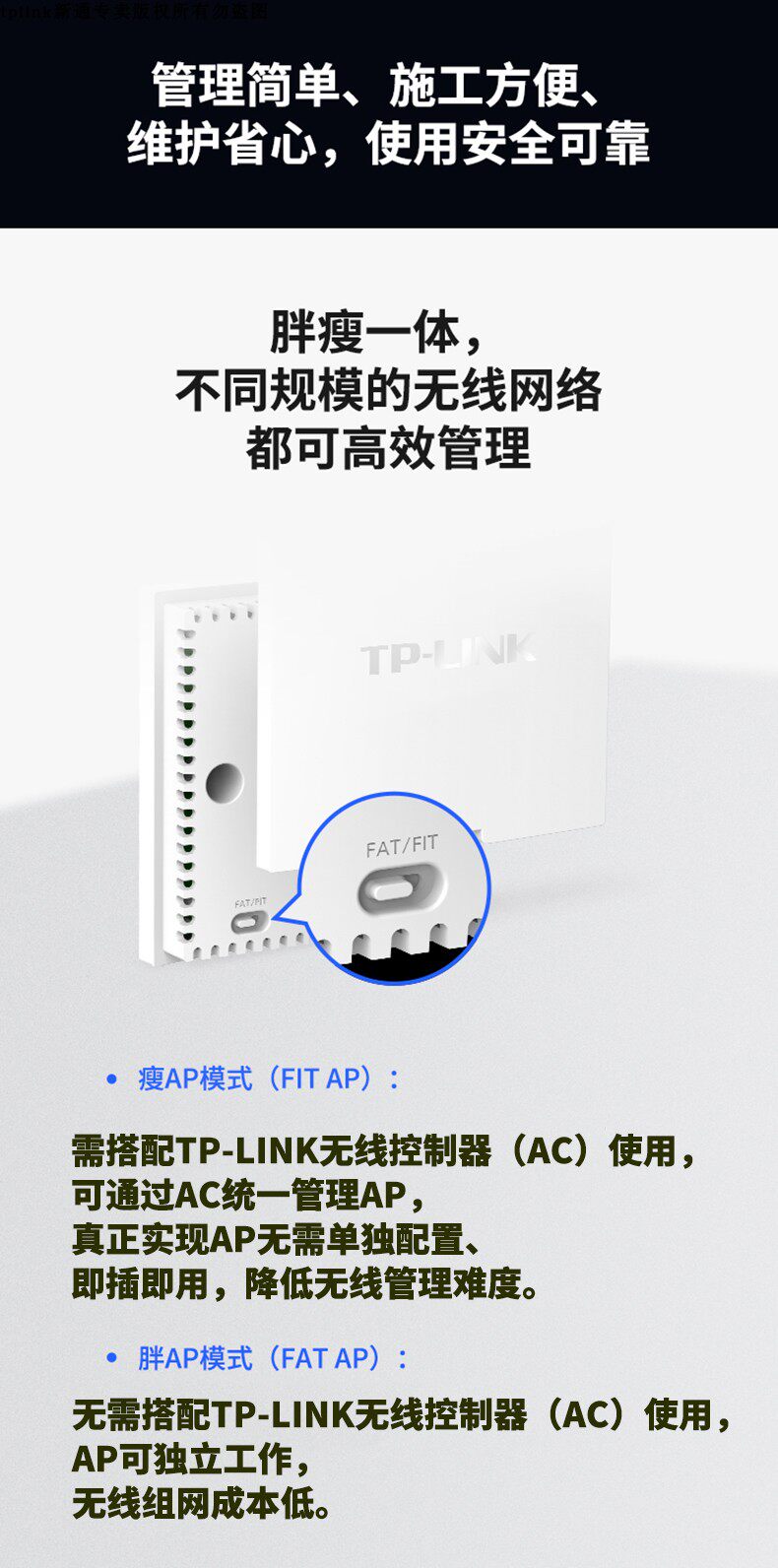

: 1 FAT/FIT mode toggle switch
:1 Reset button

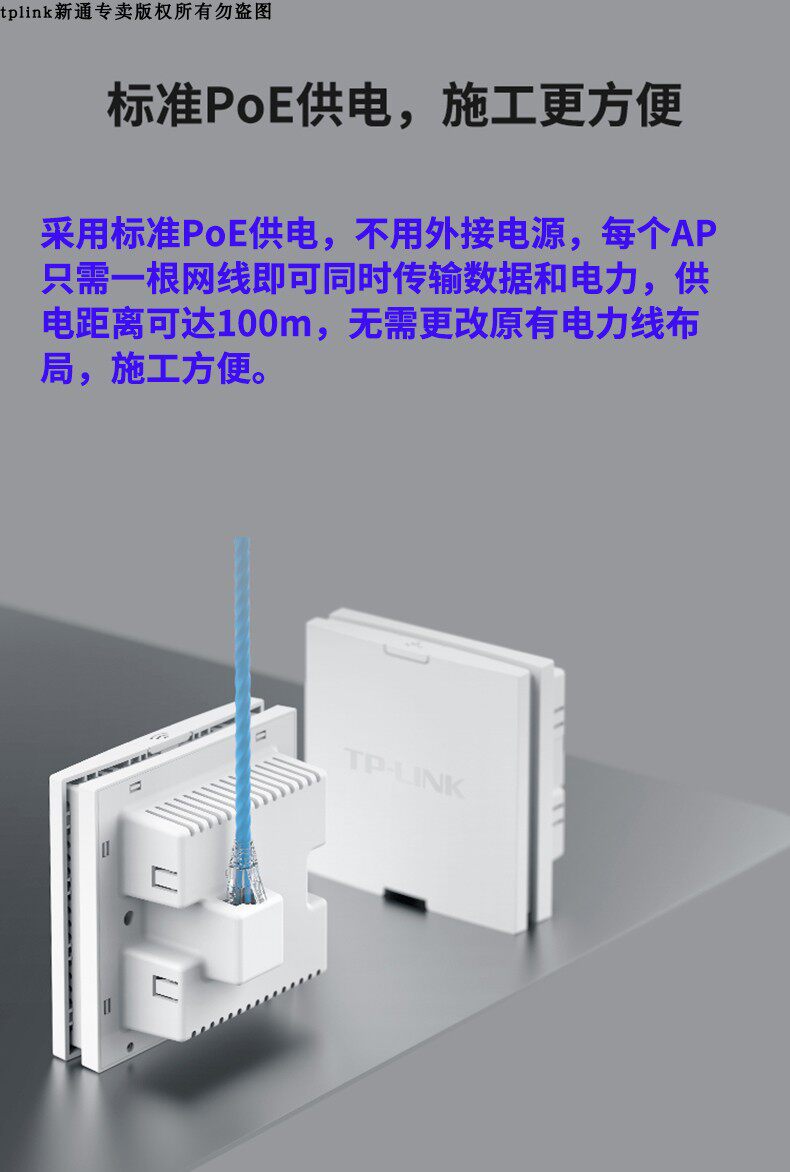

Power supply: standard PoE power supply
Power consumption of the whole machine: 9.6W
manage
:FIT AP mode: unified management by TP-LINK wireless controller (AC)
:FAT AP mode: independent web page management
Use environment
: Working temperature: 0℃～40℃
: Working humidity: 10%～90%RH non-condensing
: Storage temperature: -40℃～70℃
: Storage humidity: 5%～90%RH non-condensing
Agreement standard
:IEEE 802.11a/n/ac
:IEEE 802.11b/g/n
MIMO: 2*2
Software specifications (FAT AP mode)
wireless function
:SSID broadcast: support
: SSID number: 8 (2.4G) + 8 (5G) (support Chinese SSID)
:Network type: host network, guest network
: Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK
: User isolation: isolation between wireless networks, isolation within APs
: Wireless MAC address filtering: support whitelist
: VLAN setting: support SSID and Tag VLAN binding
: Transmit power setting: support 1dBm linear adjustment
:WDS function: support
: Limit on the number of wireless clients: support
:QoS: WMM
: Prohibit access to weak signal equipment: support
: Eliminate weak signal equipment: support
The number of clients that can be associated (without a device): 100 (2.4G) + 100 (5G)
System Management
: Equipment management: Chinese WEB management
:System log: support
:Restore factory settings: support
: Backup configuration: support
: Import configuration: support
: Software upgrade: support
:Ping watchdog: support
