Description
Specifications:
Product color: white
Processor: lPQ5000 Dual-core 1.0GHz CPU
Network acceleration engine: Single core 1.0GHz
Flash: 128MB
Memory: 256MB
2.4G Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 574Mbps)
5G Wi-Fi: 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 2402Mbps)
Product antenna: 4 external high gain antennas
Product heat dissipation: natural heat dissipation
Machine interface:
1 10/100/100OM adaptive WAN port (Auto MDI/MDIX)
3 10/100/1000M adaptive LAN ports (Auto MDI/MDI×)
LED indicator: 2 (System indicator × 1, Internet indicator × 1)
System reset button: 1
Mesh button: 1
Power input interface: 1
Protocol standard: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Certification standards: GB/T9254-2008; GB4943.1-2011
Wireless Parameters:
Dual frequency: 2.4GHz and 5GHz
Wireless channel:
2.4GHzChannel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,52,56,60,64,149,153,157,161,165
Modulation
11b: DsSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps),
16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM.
Rate set: MCSO~MCS15
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCSO~MCS11 (support 2 streams)
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Rate set: MCSO~MCS9 (support 2 streams)
Operating System:
Software parameters: MiWiFi ROM, a smart router operating system deeply customized based on OpenWRT
Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
Wireless access control (black and white list), SSID hidden, intelligent anti-scratch network
Management application: support Web, Android, iOS
Working Environment:
Working environment temperature: ~ 40 ℃
Working humidity: 10%~90%RH (non-condensing)
Storage temperature: -40～7o ℃
Storage humidity: 5%~90%RH (non-condensing)
It can be combined with the latest software version of Xiaomi router AX9000/AX6000/AX3600/AX1800 and Redmi router AX5/AX6.

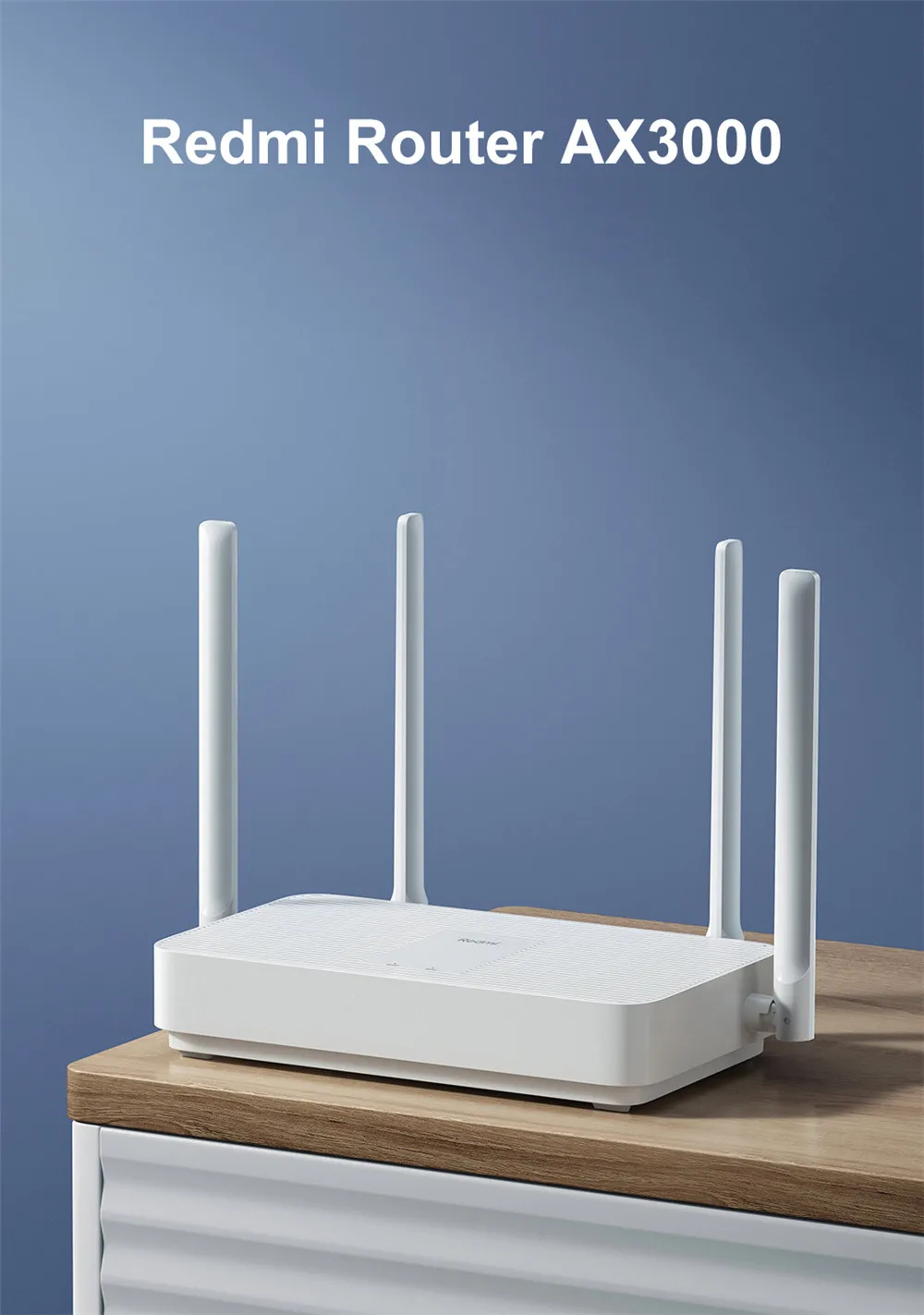

3000M Wireless Rate
AX3000 adopts the new generation WiFi6 technology, the 5G frequency band supports 2×2160MHz bandwidth, and the dual-band concurrent wireless rate is up to 2976Mbps*.
2976mbps is the theoretical value of the maximum wireless rate of 2.4GHz and 5GHz dual band concurrency. Actual speed will vary depending on the environment.

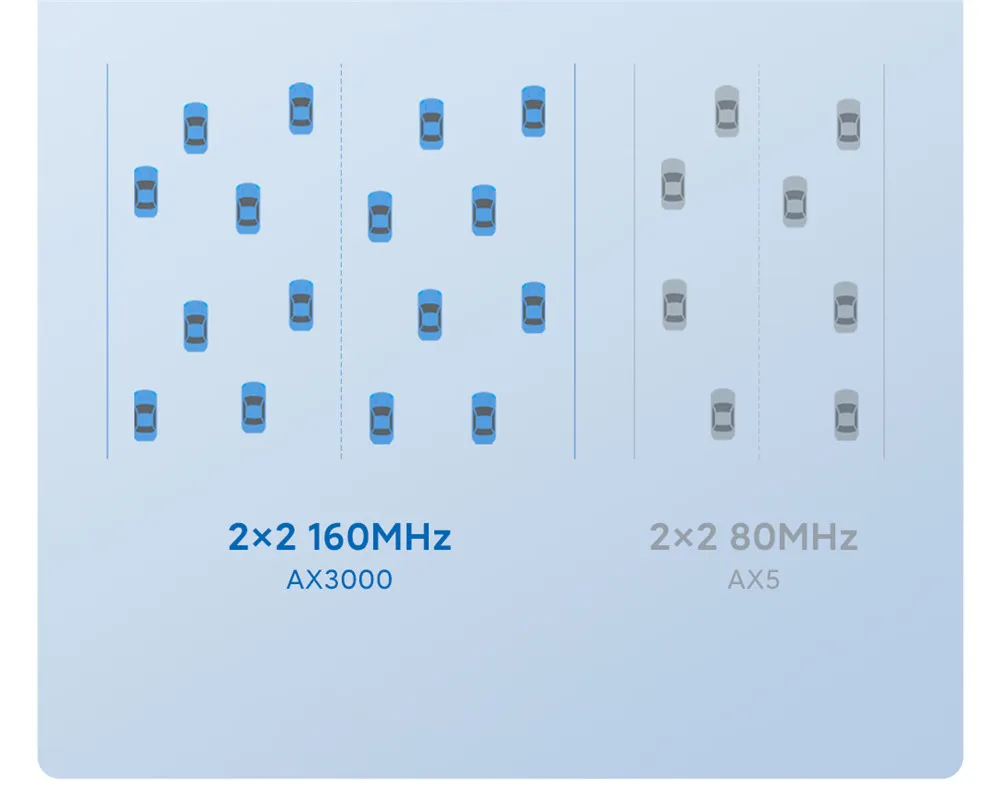

5G 160MHz High Bandwidth
*Need to be used in 5G frequency band with equipment supporting 160MHz.

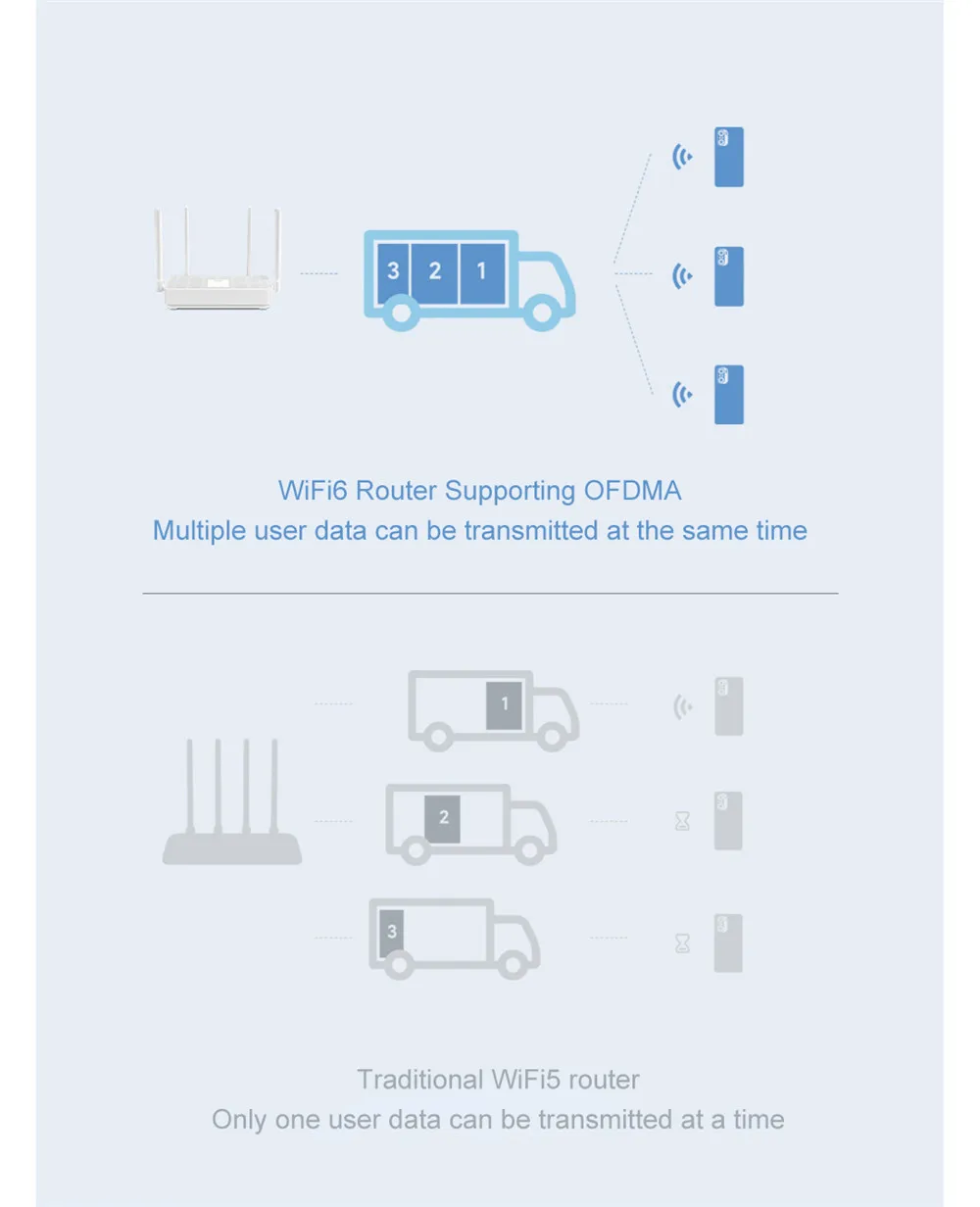

Efficient OFDMA Transmission Reduces Network Congestion
As the core technology of Wi Fi 6, OFDMA allows the router to complete the data transmission of multiple devices at one transmission. Multi device Internet access, efficient transmission.

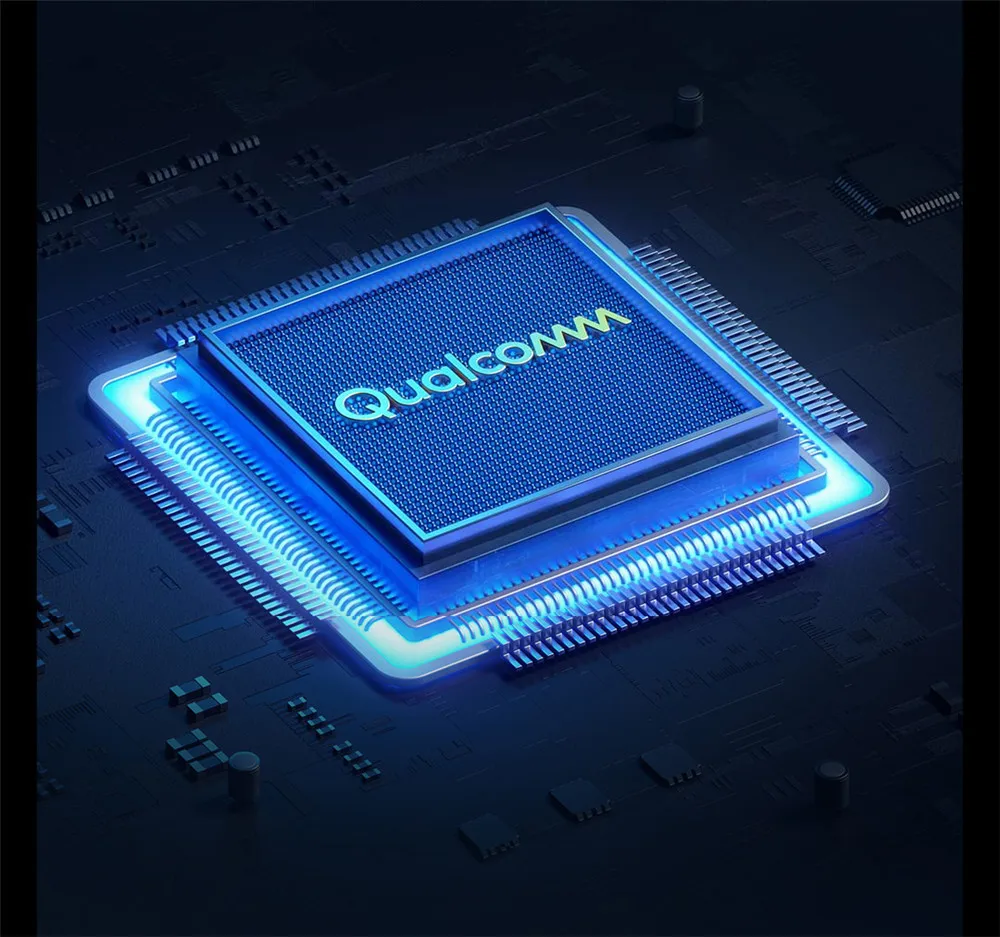

The New Architecture Design of Qualcomm Router Chip
NPU network acceleration engine is designed to process network data traffic and reduce CPU load

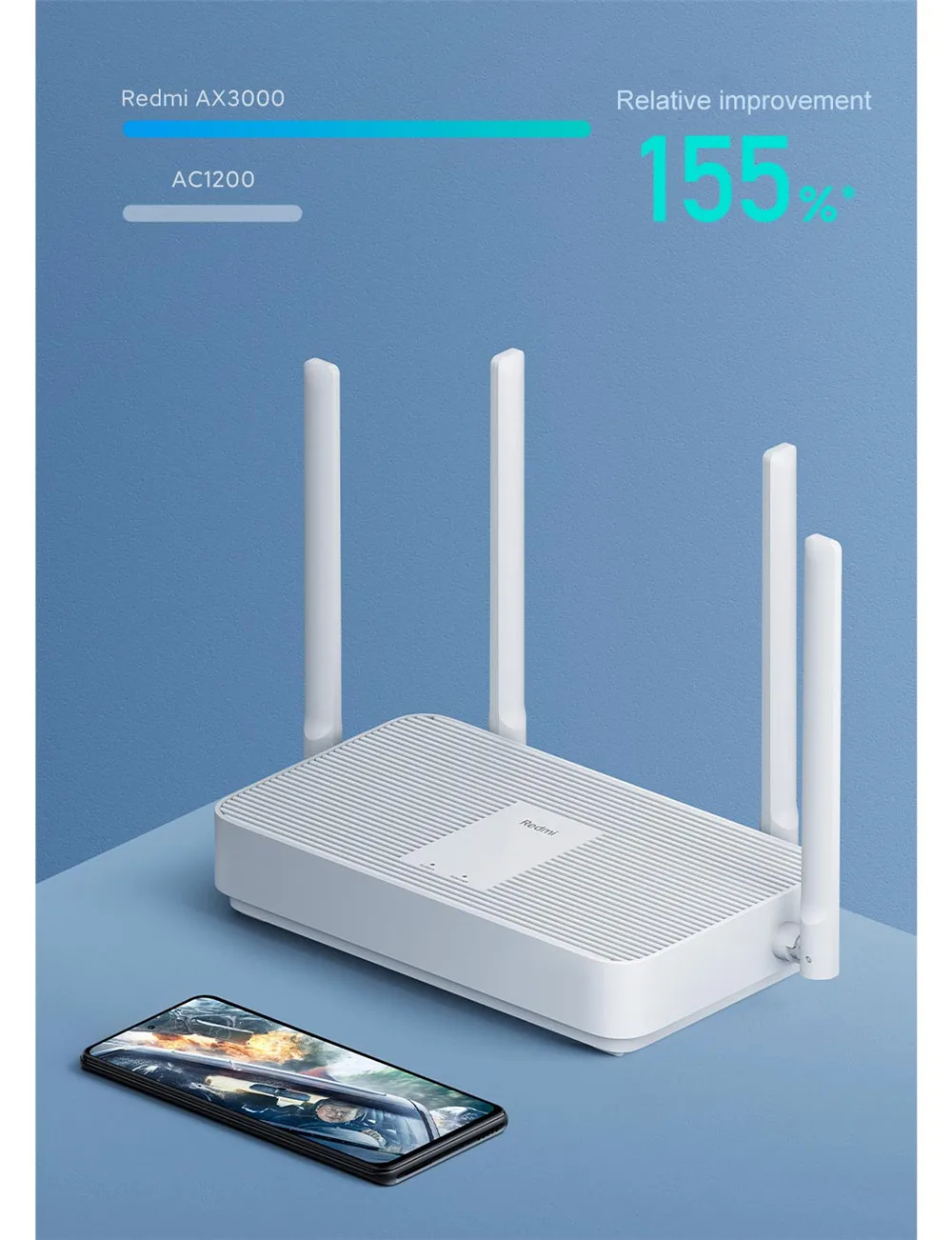

4-channel independent signal amplifier, stronger through the wall
The 2.4GHz and 5GHz bands are equipped with independent signal amplifiers (PA + LNA). While effectively enhancing the signal transmission power, the signal reception sensitivity is improved, and the theoretical signal coverage strength is increased by 50%.

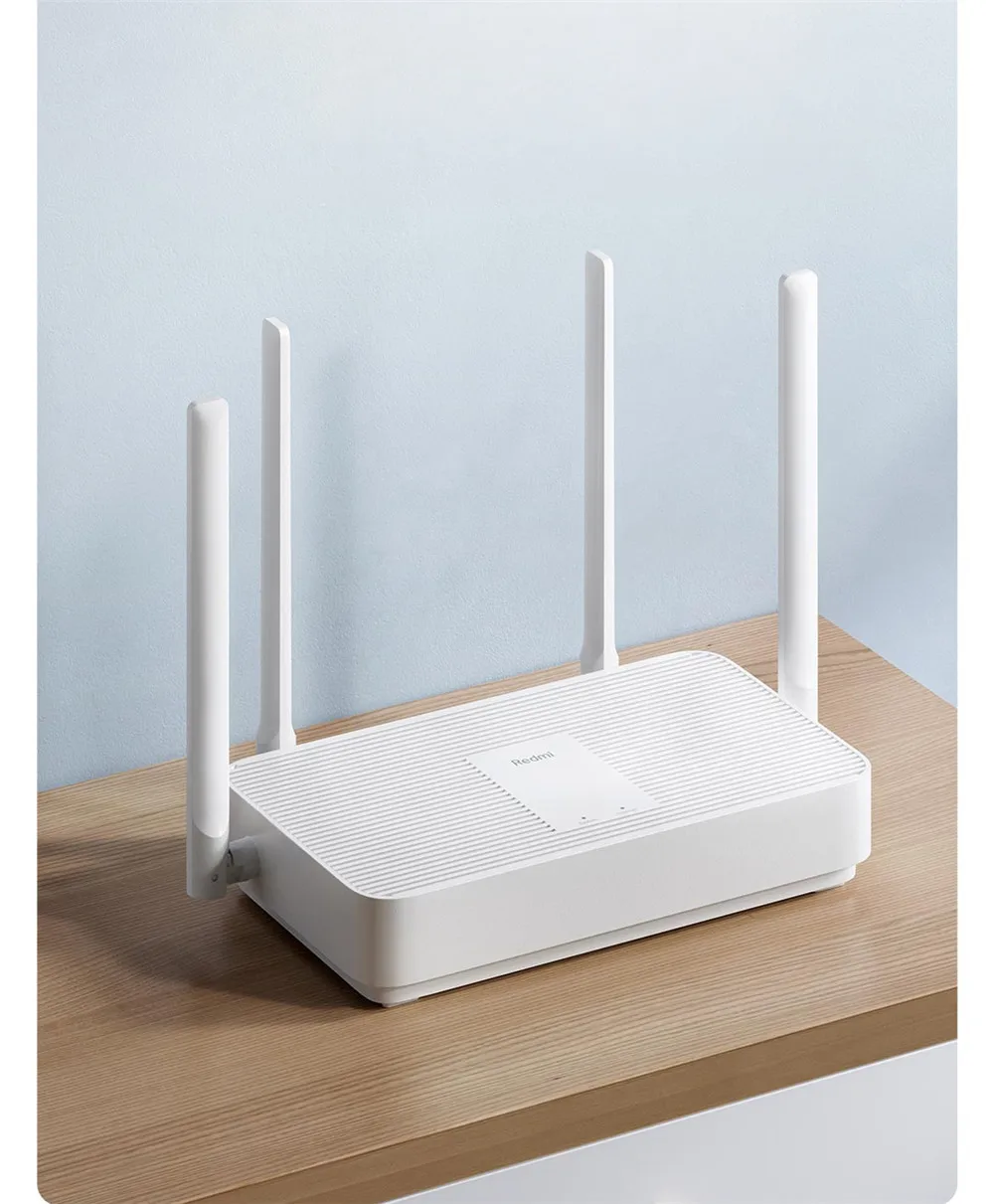

4 antennas are precisely debugged, and there are good signals from a long distance
4 external high gain omnidirectional antennas support LDPC error correction algorithm, which significantly enhances the anti-interference ability and signal coverage during data transmission.

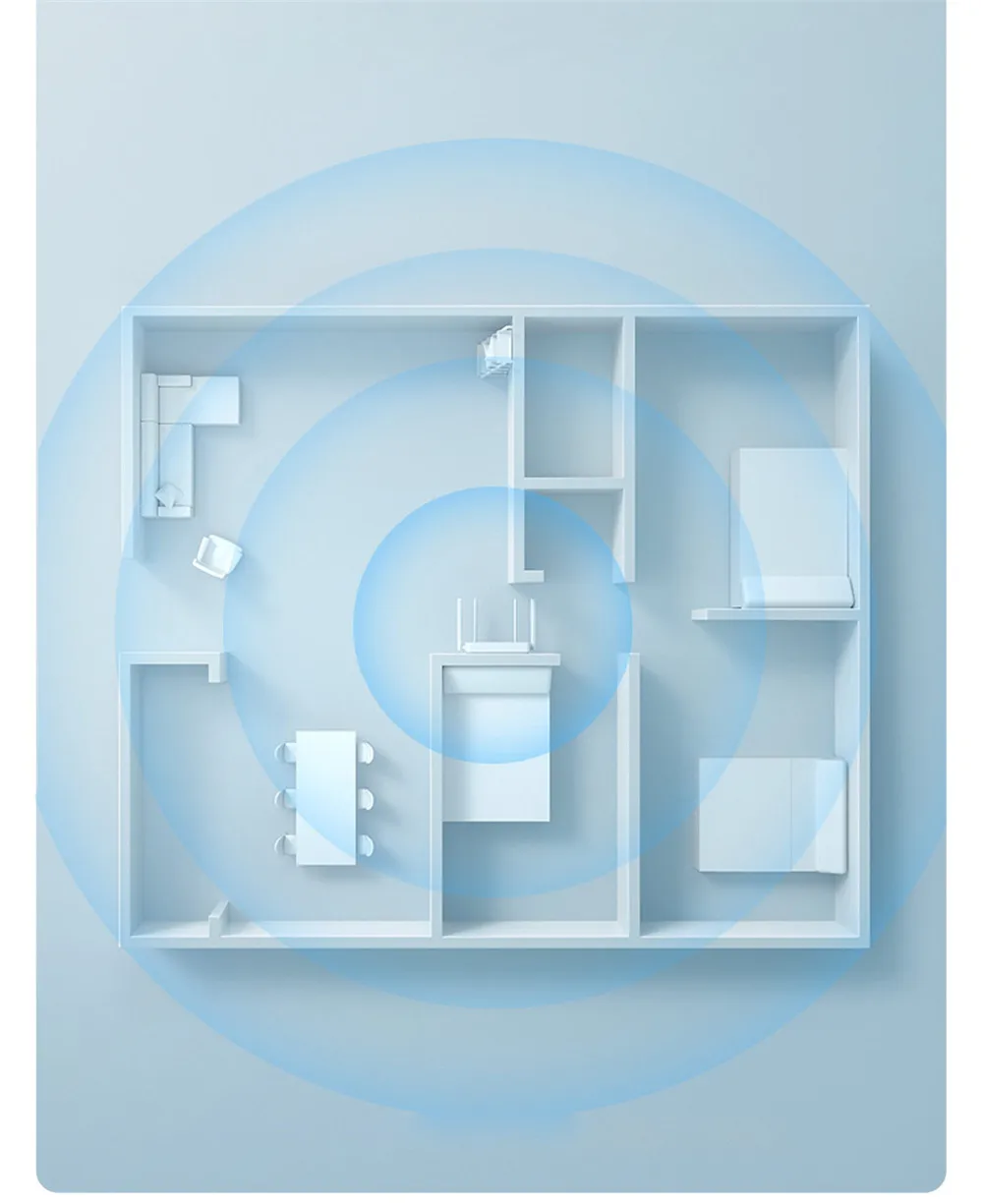

Support Xiaomi mesh scheme
Mesh technology allows multiple powerful routes to form a strong mesh network with stronger signals and wider coverage. Whether it is a large house or a multi-storey house, it can cover the whole house with super strong signal.
256MB large memory is specially prepared for multi device networking. Mobile phones, tablets, notebooks and smart devices in the whole house are stably connected and respond freely at any time.
When multiple devices surf the Internet, the router can intelligently identify your Xiaomi / redmi mobile phone, open a dedicated acceleration channel in the game scene, and significantly reduce the game delay.
