Description

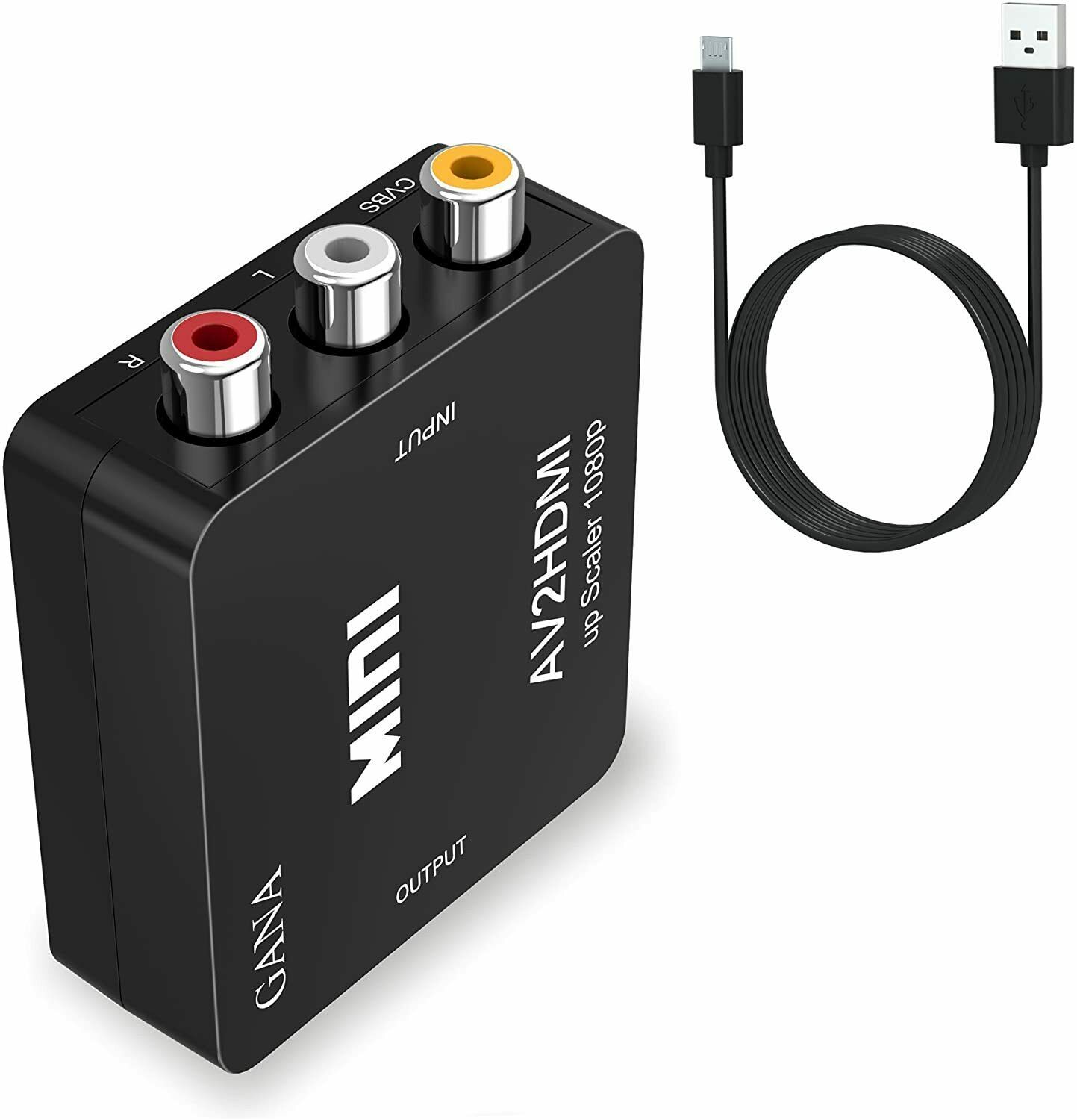

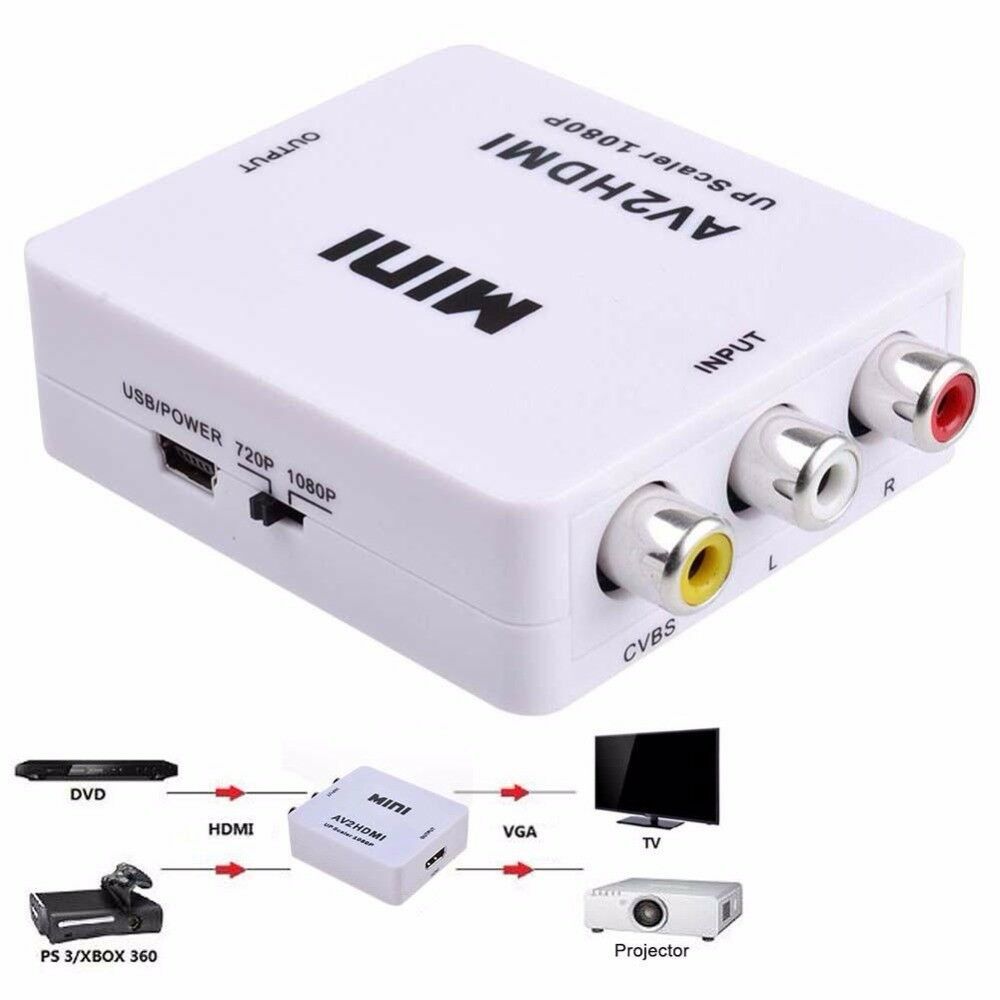

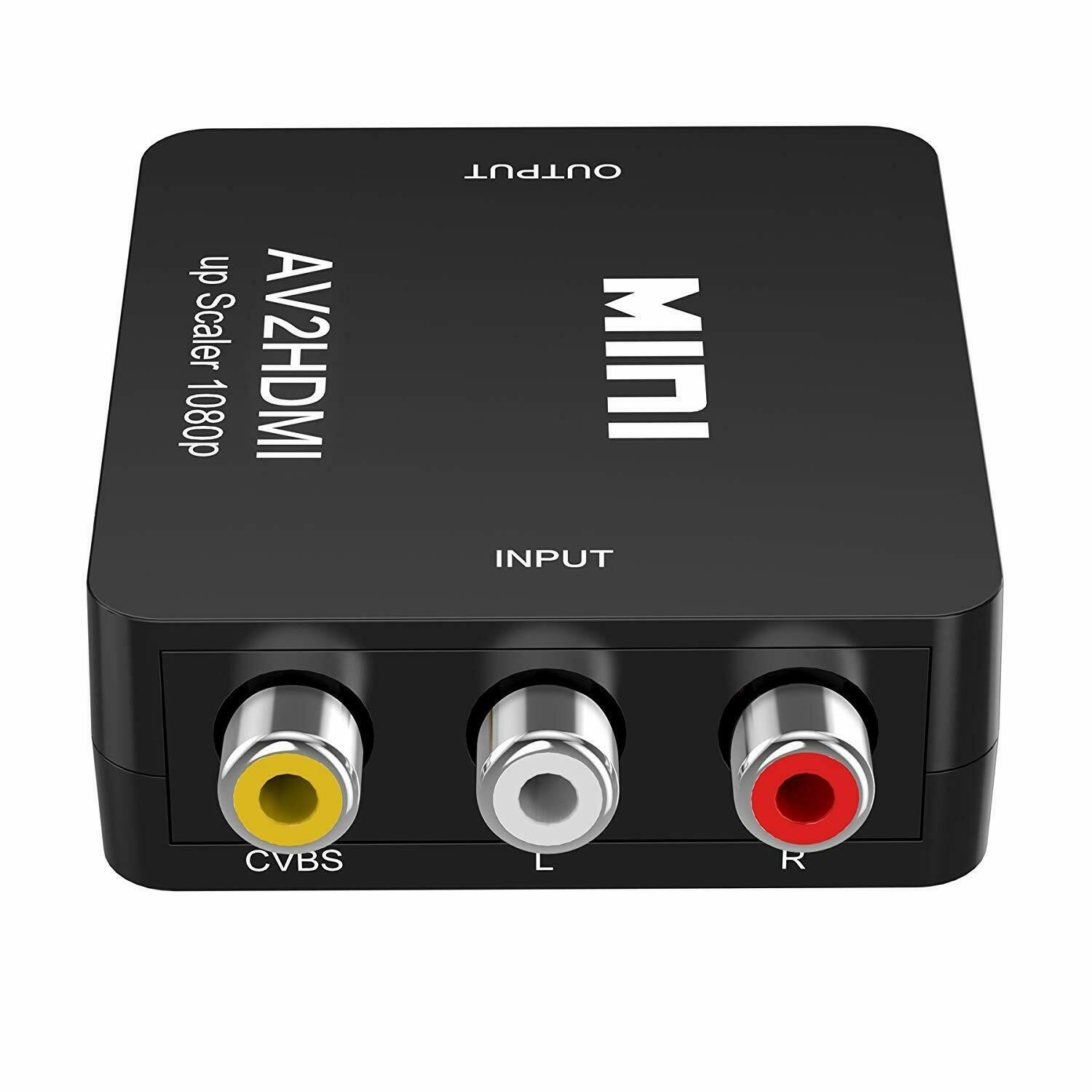

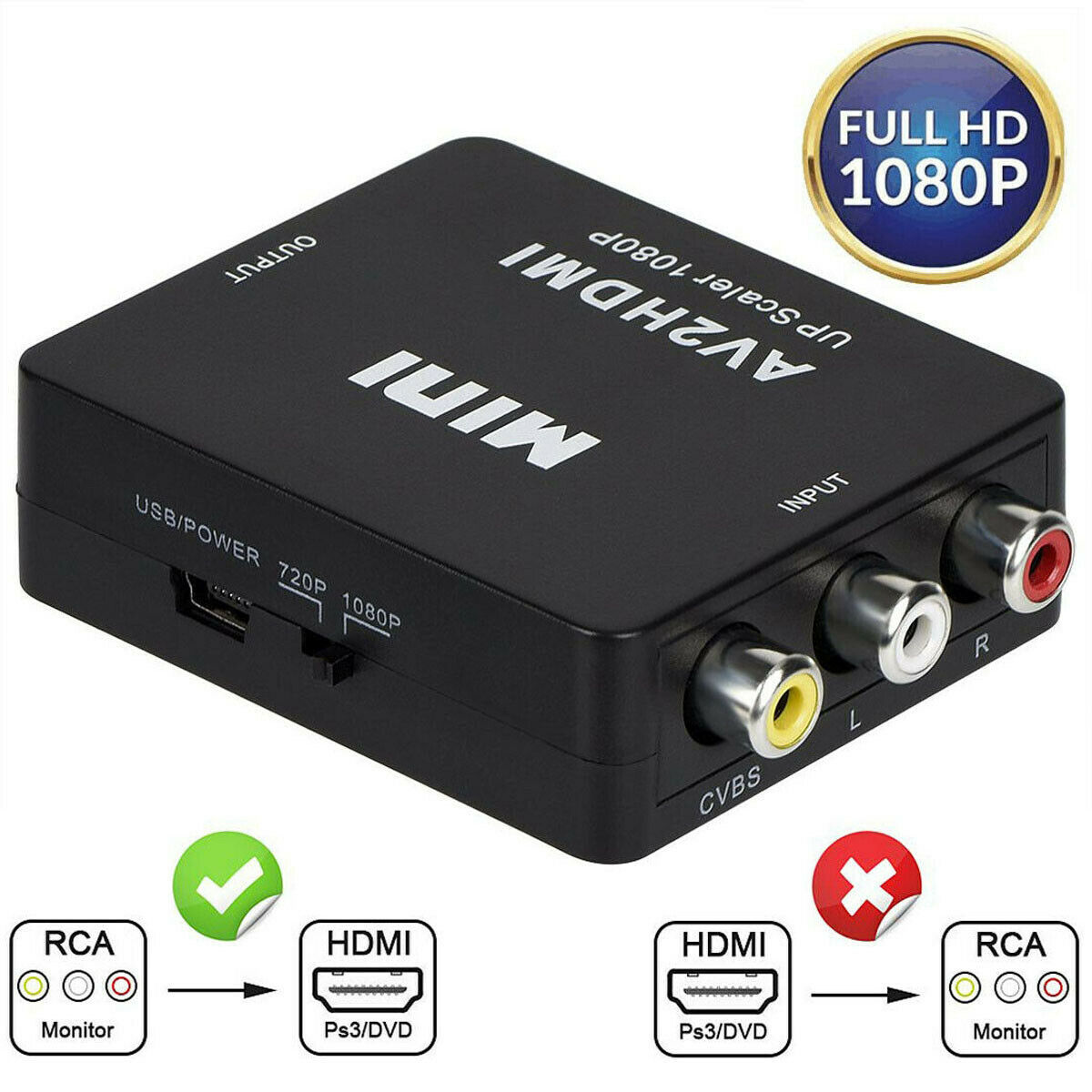

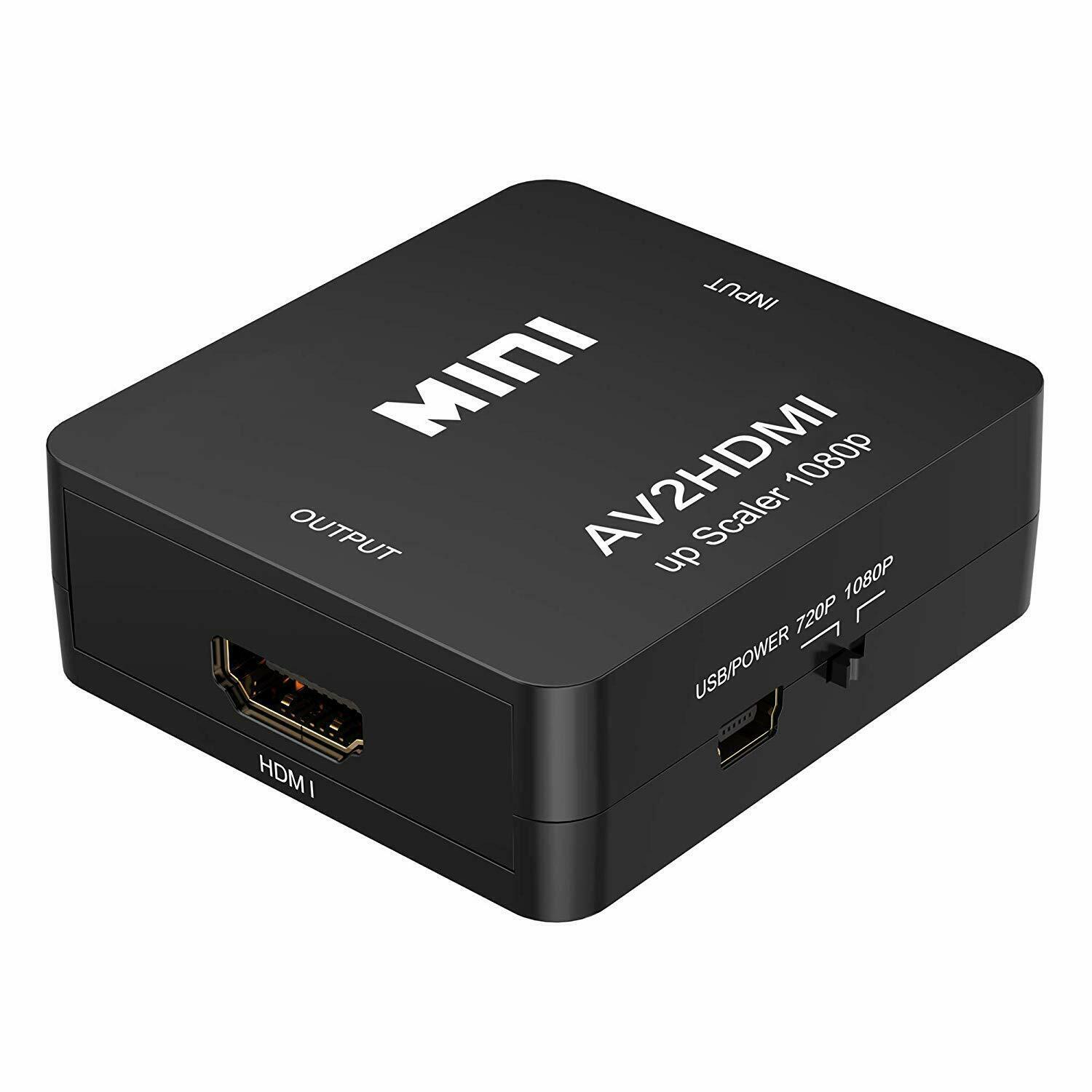

【Product Name】 AV to HDMI converter composite audio and video (CVBS) to HDMI red yellow and white Lotus to HDMI
【Product Size】 66 (L) x55 (W) x20mm
【product description】
AV to HDMI signal converter, AV (CVBS) composite video signals and FL / FR stereo audio signals into HDMI digital signals, so that ordinary DVD, video cameras and other composite audio and video signals to HD HDMI signal output, easy to connect the LCD TV , High-definition display and so on.
【Product Features】
Input signal format: AV (red, yellow, white) cvbs composite audio and video.
Output signal: HDMI 1080P 60HZ / 720P 60HZ.
Support video input standard: PAL, NTSC3.58, NTSC4.43, SECAM, PAL / M, PAL / N. Compatible with HDCP protocol.
Power: If the power supply is insufficient USB power supply (5V)
【Product Specifications】
Product Type: Mini AV to HDMI Converter
Interface Type: 1 AV input, 1 HDMI output
Size: about 66 (L) x55 (W) x20mm
color: White
Weight: 40g
Wiring length: Mini USB power cord about 1 meter
Introduction:
The MINI AV2HDMI converter is a universal converter for analog composite input to HDMI 1080p (60Hz) output. The analog to digital conversion in this module employs 10 bits maximal 162Msps sampling, black/white level expansion, color transition improvement, dynamic range exp0ansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p (60Hz) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
Features:
No need to install drivers, portable, flexible, plug and play.
Provide advanced signal processing with great precision, colors, resolutions and details
Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.
Support HDMI 1080p or 720p output.
Specifications:
Input ports: 1xRCA (Yellow, White, Red)
Output ports: 1xHDMI
Dimensions (mm): 66(D)x55(W)x20(H)
Weight (g): 60
Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N
HDMI output: 1080p/60Hz, 720p/60Hz
Package Include:
1 x Mini AV CVBS to HDMI Converter
1 x Power Adapter(US)
1 x USB Cable
Features:
The MINI AV2HDMI converter is a universal converter for analog composite input to HDMI 1080p (60Hz) output. The analog to digital conversion in this module employs 10 bits maximal 162Msps sampling, black/white level expansion, color transition improvement, dynamic range exp0ansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p (60Hz) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
No need to install drivers, portable, flexible, plug and play.
Provide advanced signal processing with great precision, colors, resolutions and details
Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.
Support HDMI 1080p or 720p output.
Specifications:
Input ports: 1xRCA (Yellow, White, Red)
Output ports: 1xHDMI
Dimensions (mm): 66(D)x55(W)x20(H)
Weight (g): 60
Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N
HDMI output: 1080p/60Hz, 720p/60Hz
Package included:
1 x AV2HDMI Converter
1 x USB Cable
1 x User Manual
