Description
Designed for perfect fit.
High quality 100% brand new.

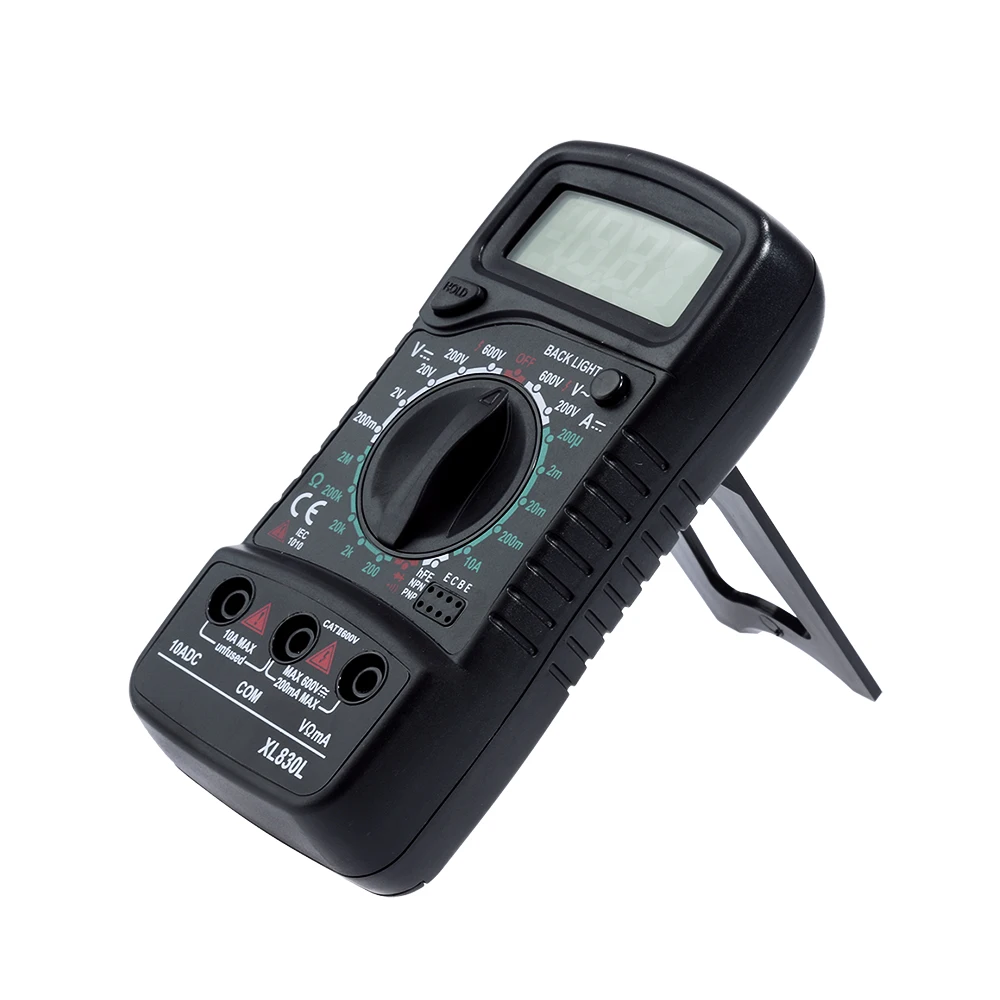

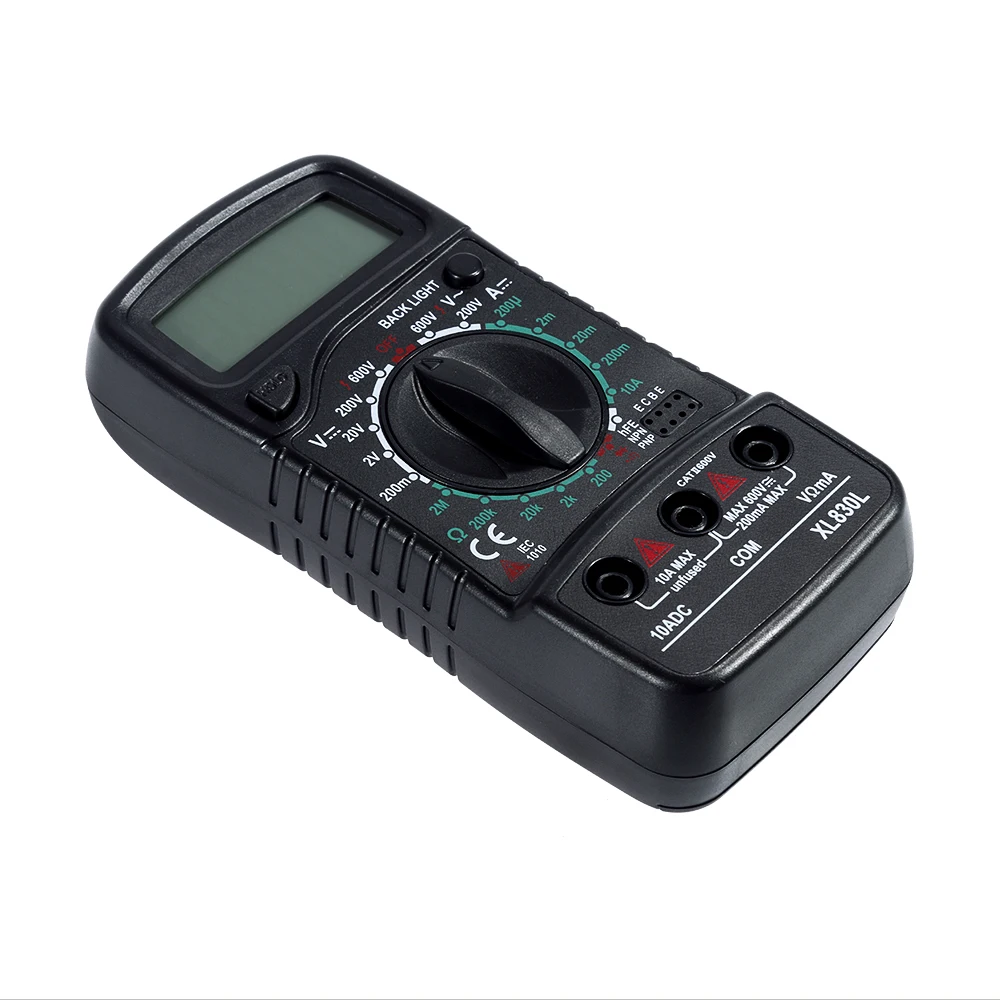

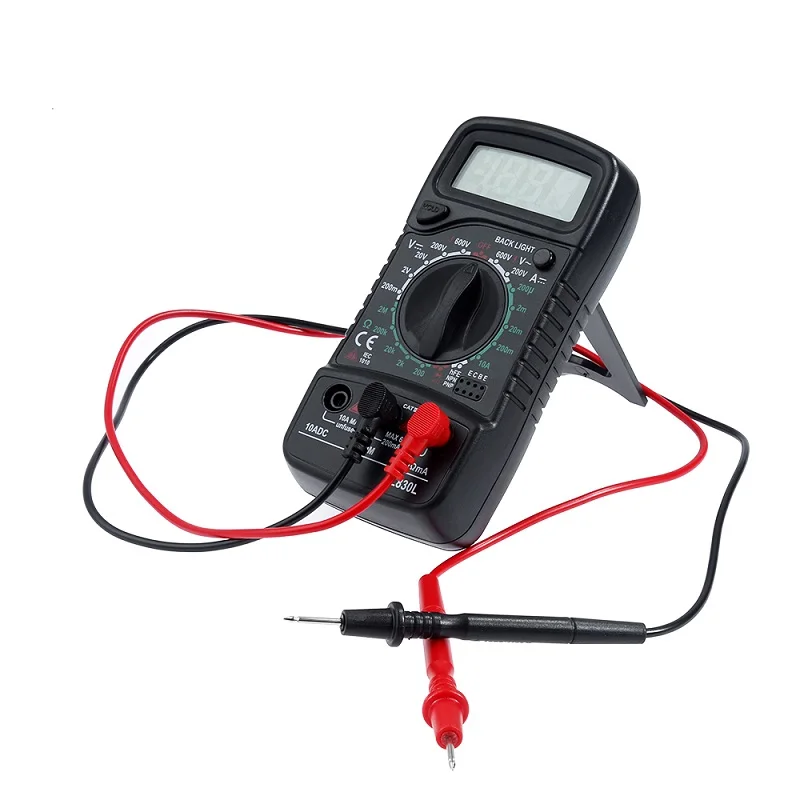

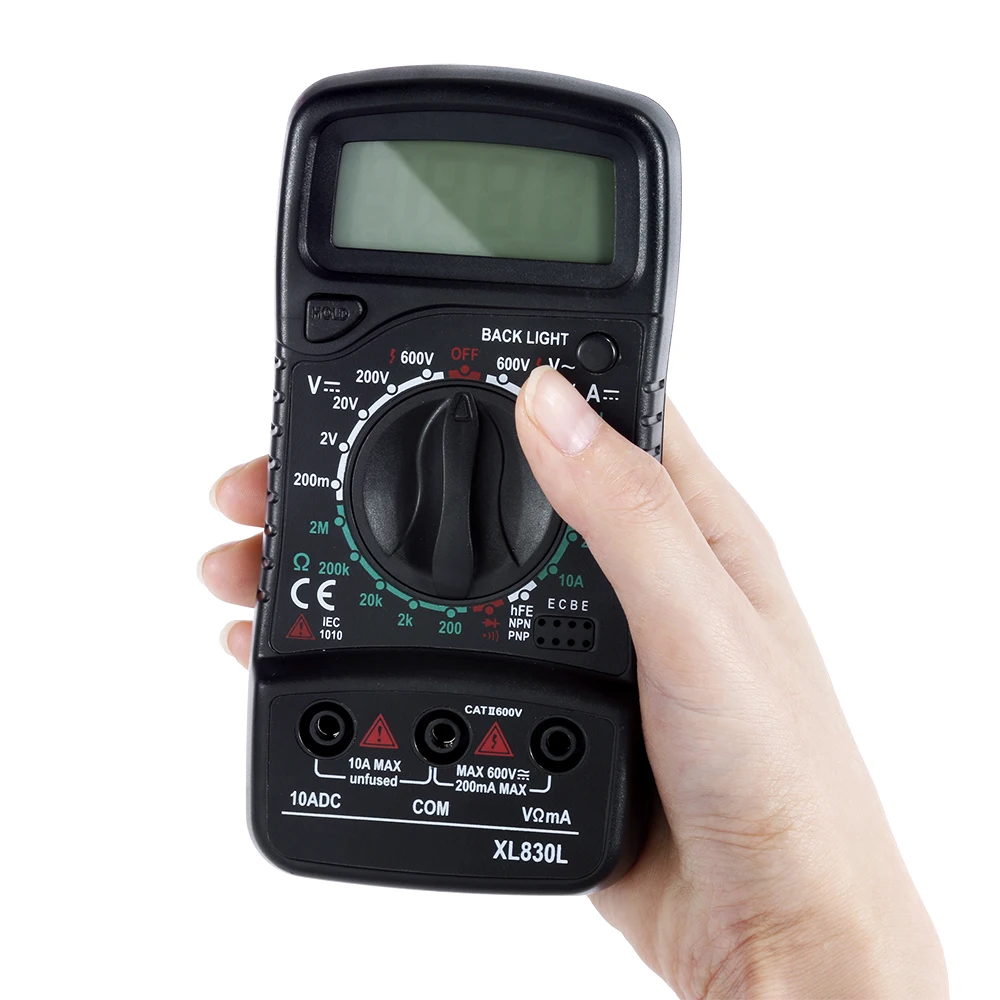

The Digital Multimeter is a practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen.
15mm high LCD Display.
Max display: 1999, Auto polarity display.
Portable and compact design, overload protection on all ranges.
Diode assembly test/Transistor P-N junction test/Transistor HFE test.
Continuity test with buzzer sound in circuit.
DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%.
AC Voltage: 200V/600V ±1.2%.
DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%.
Resistance: 200ω/2Kω/20Kω/200Kω/2Mω ±0.8%.
Fuse protection: F-200mA/250V.
Operating Temperature: -0 to 40.
Overrange Indication: Only figure “1” on the display.
Polarity Indication: “-” displayed for negative polarity.
Low Battery Indication: – /+ display.

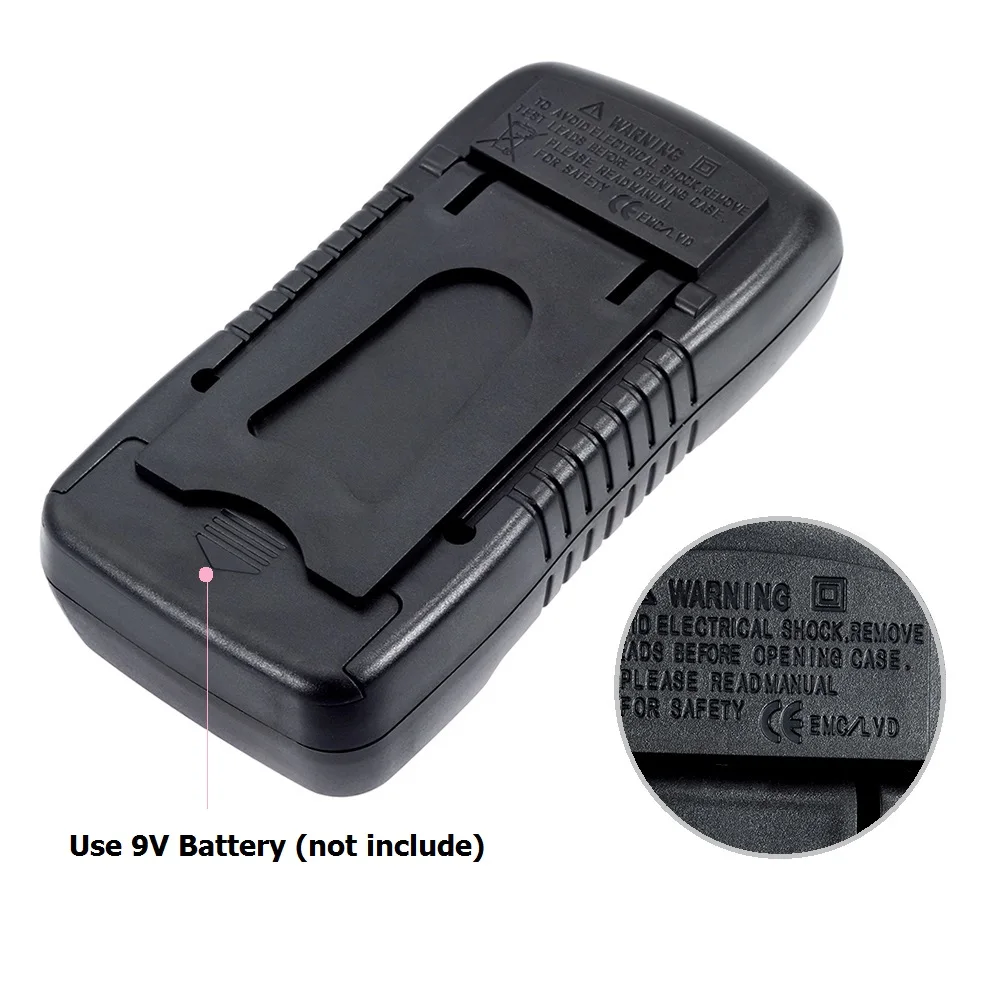

Battery: 9V (Battery not include).
Dimension: Appro 13cm * 6cm * 3cm
# Battery won’t be included in shipping becased of new air post regulation.
