Description

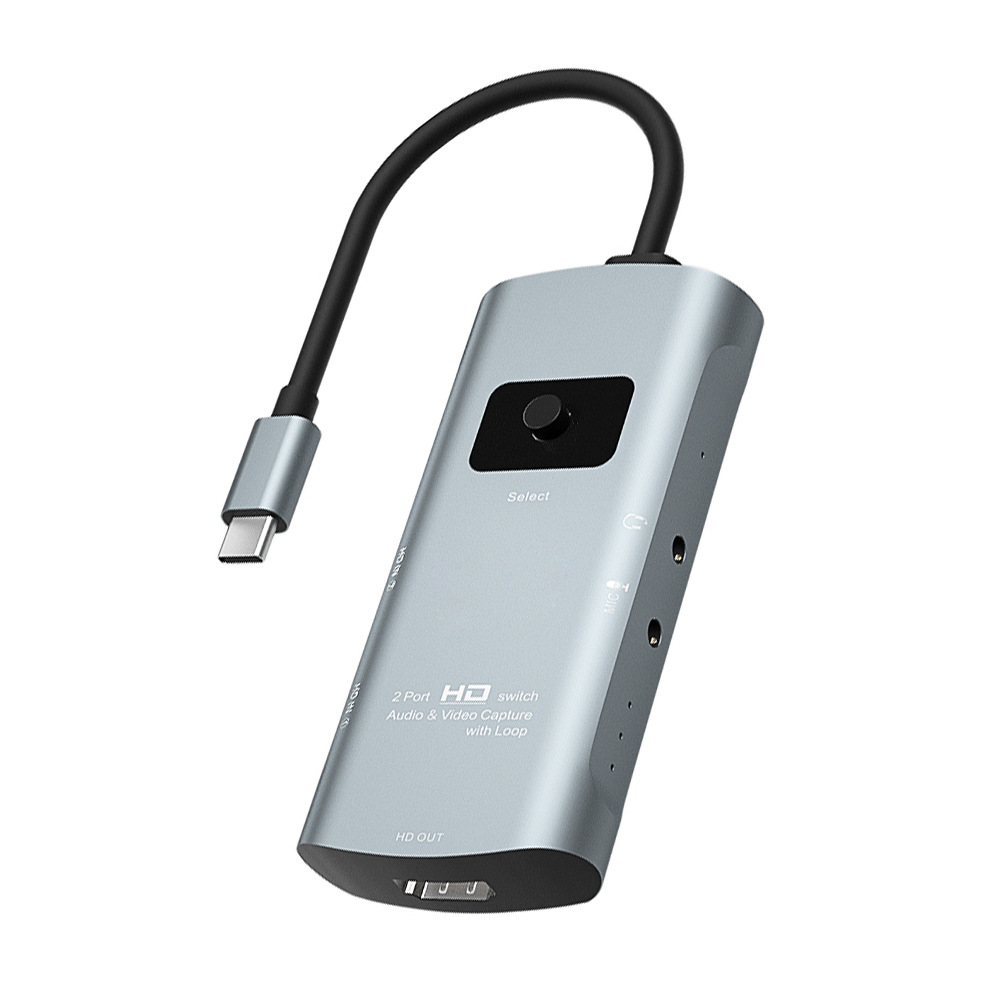

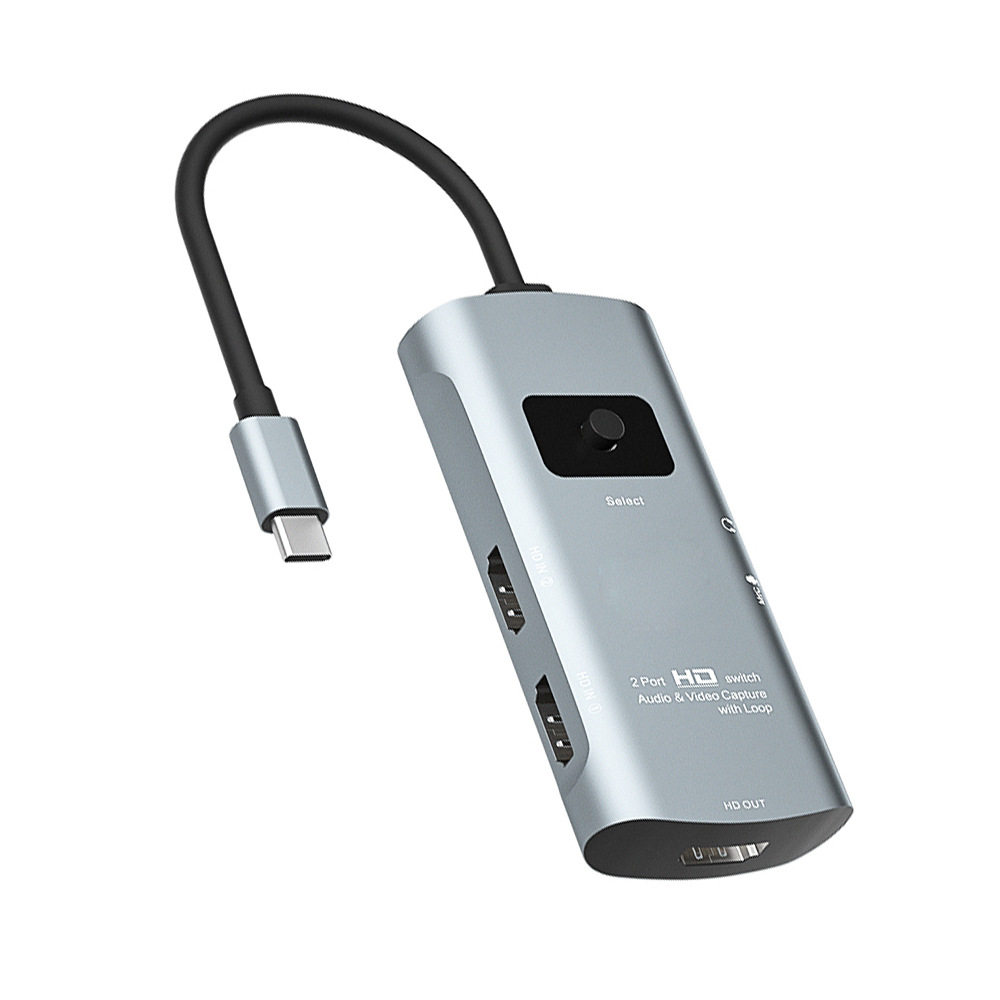

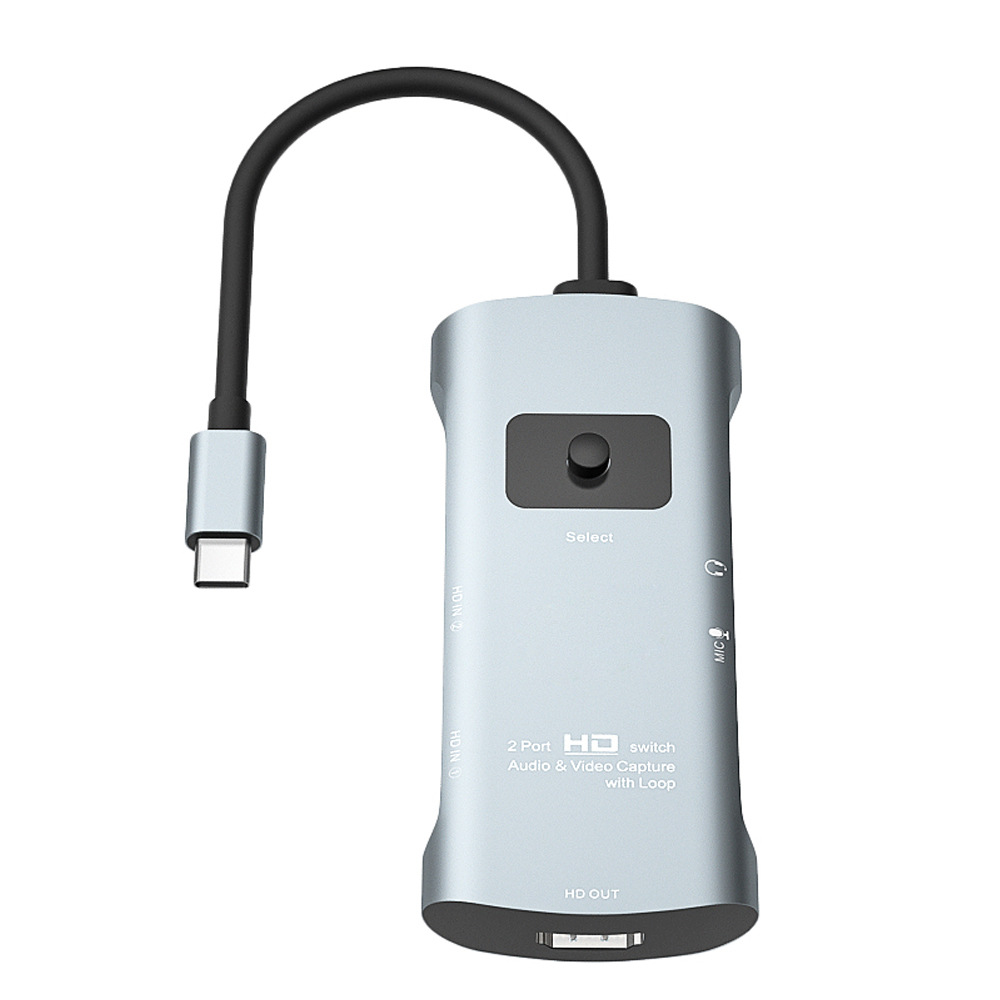

TYPE-C video capture card (4K/1080P)Product function: This product is a portable HD high-definition video capture card, which can simultaneously capture HD audio and video signals and transmit them to the hand
Preview, edit, save and other multi-functional applications on the computer and computer.
Product application: Connect the HD input end of the capture card to the signal source, the HD output end to the display port, and the Mic end to the microphone.
It can realize high-definition acquisition, video recording, video live broadcast, teaching recording, medical imaging, game live broadcast, video live broadcast, recording camera HD video
Frequency and so on. The two HD signal sources can be switched freely, which solves the problem of switching between different signal sources. PS: When this product is connected to the active speaker in the audio port, if you
Dropping the USB port may cause noise, which is normal.
Features:
1. The product complies with USB video UVC specification and USB audio UAC specification;
2. Support operating systems such as Windows, Android, Linux and MacOS;
3. Support most acquisition software, such as VLC, OBS, Amcap, etc.;
4. Support HD local loop out;
5. Supports microphone input, and the audio port supports a headset integrated;
Note: When the microphone and headset integrated headset are used at the same time, the integrated headset end has no microphone function.
6. Support free switching of two HD signal sources;
7. Support microphone audio and HD audio overlay collection;
8. Input terminal: HD/F input can support 4K, 8/10/12 bit color depth input format
9. Output terminal: USB/M supports 1080P; MJPEG output mode
10. High-definition capture, strong compatibility and smooth picture;
11. No need for external power supply, portable;
12. Operating environment: -20℃ to 65℃, relative humidity is 5% to 95%
