Description
description:

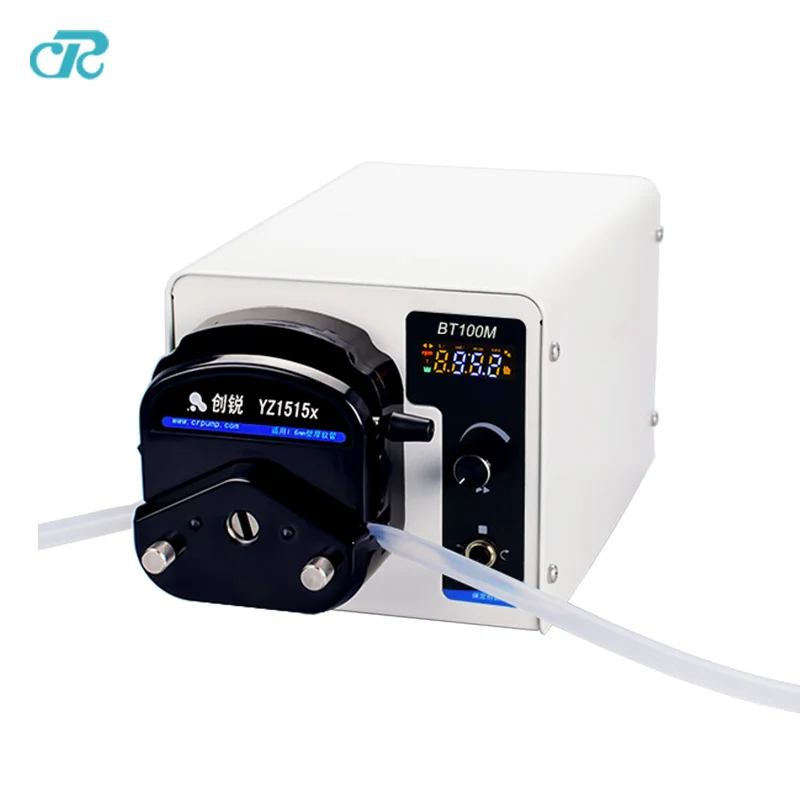

Cost High accuracy Easy Operation Basic Peristaltic Pump BT100M/YZ1515X
Technical parameter
|
Model |
BT100M/YZ1515x |
|
Revolving Speed Range |
0.1-100rpm |
|
Speed Resolution |
0.1rpm |
|
Flow Rate Range |
0.007-380ml/min |
|
Speed Error |
＜0.5% |
|
Control Method |
Knob |
|
Display |
4-LED display double mode( flow rate and speed) |
|
Power Supply |
AC220V±10%（standard） or AC110V ±10%（optional） |
|
Power Consumption |
＜22W |
|
External Control |
Start & stop, direction control, speed control( Analog control :0-5v, 0-10v, 4-20mA option ) RS232 and RS485 Communication interface, support MODUBUS Communication Protocol |
|
Work Environment |
Temperature 0-40℃, ＜80% relative humidity, no condensation |
|
Drive dimension |
234*154*144 mm |
|
Weight |
4.12KG |
|
IP Rating |
IP31 |
Feature:
*With both-way large torque, low power motor. It can be connected with several pump heads to satisfy the different demands of flow rates.
*Long life, digital rotary knob, easy to operate,
*FULL SPEED button available.
*Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.
.
